Item Description:
Control Panel Wire Color Chart
Signal Word:
None
Symbol:
None
Price:
$9.54
Adding to cart… The item has been added
Availability:
Select Material and Size to see Availability

Bulk Pricing:
  • 25 - 49 for $9.54/each
  • 50 - 99 for $8.18/each
  • 100 - 249 for $7.51/each
  • 250 - 499 for $6.49/each
  • 500 - 999 for $5.36/each
  • 1000 - 2,499 for $4.45/each
  • 2500 - 4,999 for $4.08/each
  • 5000 or above for $3.76/each

Word Message:

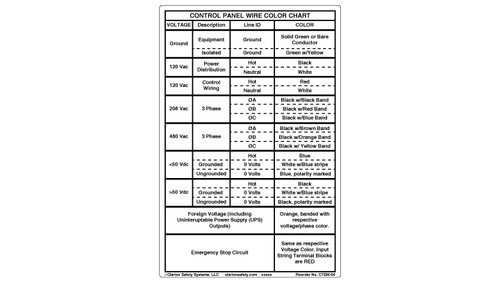

CONTROL PANEL WIRE COLOR CHART
VOLTAGE Description Line ID COLOR
Ground Equipment Ground Solid Green or Bare Conductor
Isolated Ground Green w/Yellow
120 Vac Power Distribution Hot Black
Neutral White
120 Vac Control Wiring Hot Red
Neutral White
208 Vac 3 Phase
ØA Black w/Black Band
ØB Black w/Red Band
ØC Black w/Blue Band
480 Vac 3 Phase
ØA Black w/Brown Band
ØB Black w/Orange Band
